Particle Oscillating Screening Machines Vibrating Particle Separation

Particle’s Oscillating Screen for Paticle Board Production Line

Description

Oscillating Screen is used for seperating particles after drying to different silo based on different size. Generally there are four paths for particles after the osillating screen. First is the dust for boiler. Second is for surface layer of particle board with small size. Third is for core layer of particle board with big size. And the last is the oversize particle which will be crushed again.

High screening capacity since the entire surface area of the installed screen is put to use
Highly economical, as up to six fractions can be handled with low space requirement
Low noise level
Low maintenance and repair
Maintenance-free, long-lasting anti-vibration mountings
Rapid screen change
High reliability with low energy consumption
Compact construction
Highly flexible under changing conditions
Any fraction can be selected
A variety of fractions in a single work step
Also available as dust-proof model
Additional screen cleaning equipment available, for instance bouncing ball cleaning system
Can be integrated into existing plants

Main characteristics of oscillating screen

• Large unit capacity based on large amplitude vibration.
• Stable running based on patent frame design.
• Long life of elastic support.
• New technology to control the motion balance.
• Lower space requirement.

Main technical data

	BF14120	BF14150	BF14180	BF14150A	BF14210	BF14260
Screen area / sqm	12	15	18	15	21	26
Piled volume / cbm/h	70	85	100	90	115	140
Piled density / kg/cbm	120	120	120	120	120	120
Capacity / t/h	8.4	10.2	12	10.8	13.8	16.8
Support	Wire rope	Wire rope	Wire rope	Elastic coupling	Elastic coupling	Elastic coupling

Product Tags:

Particle Oscillating screen



Oscillating screening machines



Vibrating screen

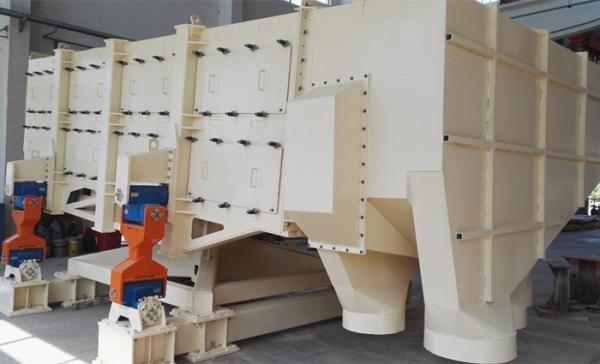

Particle Oscillating Screening Machines Vibrating Particle Separation Images
