Particle’s Oscillating Screen for Paticle Board Production Line Screen Area 26㎡
Particle’s Oscillating Screen for Paticle Board Production Line
Description
oscillating screens are suitable for wet and dry materials, particles and chips. They provide for a precise classification of wood material into different fractions, which are then sent to further processing.
The principle of operation is based on the oscillation of a sifting case equipped with several sifting decks located inside; the vibration intensity is adjustable by means of counterweights.
The quantity of the screening fractions depend upon the number of the sifting decks, while the obtainable particle size depends upon the type and mesh size of the single screens.
Screens with fine mesh size are usually equipped with an automatic cleaning system by means of rubber balls floating within the screen-holding frame. The machines can be supplied also in two-stage execution, in order to achieve big capacities, yet keeping space requirements as limited as possible.
Oscillating Screen is used for seperating particles after drying to different silo based on different size. Generally there are four paths for particles after the osillating screen. First is the dust for boiler. Second is for surface layer of particle board with small size. Third is for core layer of particle board with big size. And the last is the oversize particle which will be crushed again.
Main characteristics of oscillating screen
- Large unit capacity based on large amplitude vibration.
- Stable running based on patent frame design.
- Long life of elastic support.
- New technology to control the motion balance.
- Lower space requirement.
Main technical data
| | BF14120 | BF14150 | BF14180 | BF14150A | BF14210 | BF14260 |
| Screen area / sqm | 12 | 15 | 18 | 15 | 21 | 26 |
| Piled volume / cbm/h | 70 | 85 | 100 | 90 | 115 | 140 |
| Piled density / kg/cbm | 120 | 120 | 120 | 120 | 120 | 120 |
| Capacity / t/h | 8.4 | 10.2 | 12 | 10.8 | 13.8 | 16.8 |
| Support | Wire rope | Wire rope | Wire rope | Elastic coupling | Elastic coupling | Elastic coupling |
Product Tags:
|
|

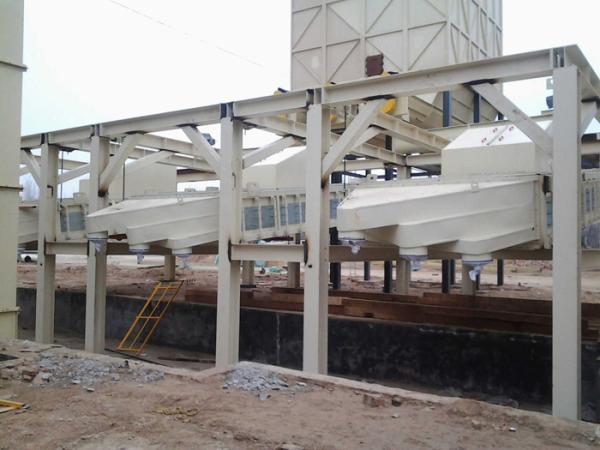

Linear Oscillating Screener Particle Separator Images
|
